Long Range Portable Handheld 27 mhz Citizens Band Shortwave CB Two Way Radio

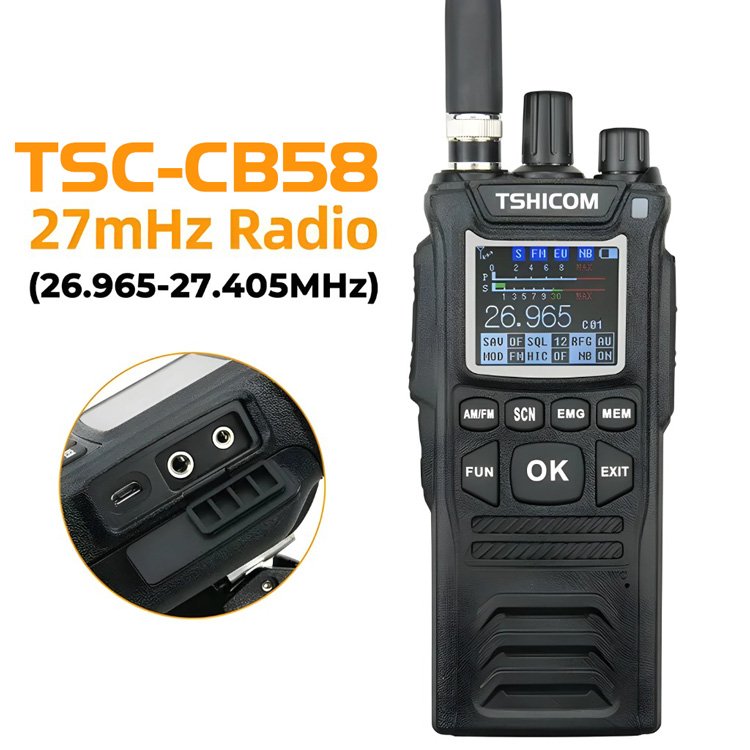

The TS-CB58 is a portable 27MHz Citizens Band handheld radio designed for drivers, transport fleets, off-road convoys, outdoor teams and CB radio distributors. It supports up to 4W AM/FM transmission, European multi-norm configurations, a color TFT LCD, eight memory channels and multiple reception-noise control functions.
- Model: TS-CB58
- Frequency Range: 26.965–27.405MHz
- RF Output Power: Up to 4W AM/FM
- Display: Color TFT LCD
- Memory: 8 programmable memory channels
- Signalling: CTCSS/DCS encode and decode, DTMF encoding
- Noise Control: Hi-Cut, NB, ANL, automatic and adjustable manual squelch
- Channel Functions: Scan and quick access to channels 9/19
- Safety Functions: TOT, keyboard lock and night-light function
Portable Handheld 27MHz AM/FM Citizens Band Radio
The TS-CB58 is a portable handheld Citizens Band radio operating across the 26.965–27.405MHz frequency range. It provides direct radio-to-radio communication without relying on a cellular network, Wi-Fi connection or POC service platform.
With up to 4W AM/FM output, a color TFT LCD, eight memory channels, European multi-norm settings and multiple reception filters, the TS-CB58 is suitable for transport fleets, drivers, off-road groups, outdoor operations and professional CB radio distributors.
Is the TS-CB58 Suitable for Your Operation?
This model is recommended for customers that need portable, licence-free or generally accessible CB communication where permitted by local regulations, particularly when cellular coverage is unreliable or recurring network subscription fees are not desirable.
Recommended Users
- Truck drivers and transport fleets
- Roadside service and recovery teams
- Off-road and convoy operators
- Agricultural and rural work teams
- Outdoor event and field personnel
- CB radio dealers and distributors
Recommended Requirements
- Portable 27MHz CB communication
- AM and FM operating modes
- Multiple European CB configurations
- Improved listening in noisy environments
- Quick access to frequently used channels
- Operation without cellular network dependence
Key Features and Operational Benefits
Up to 4W AM/FM Transmission
The TS-CB58 supports both amplitude modulation and frequency modulation, with an RF output of up to 4 watts according to the selected operating configuration. Users can select the mode required by other radios in the group and by the applicable national CB standard.
AM remains widely used in many traditional CB applications, while FM can provide cleaner local voice reception under suitable conditions. All radios communicating together must use the same channel and compatible modulation mode.
European Multi-Norm CB Configuration
The multi-norm function allows the radio to support different European CB frequency and modulation configurations. This is useful for distributors, transport operators and customers supplying radios to more than one European market.
The correct country profile must be selected before use. Available channels, AM/FM modes and permitted transmission power can differ between countries, so buyers should confirm the final configuration for the destination market before placing an order.

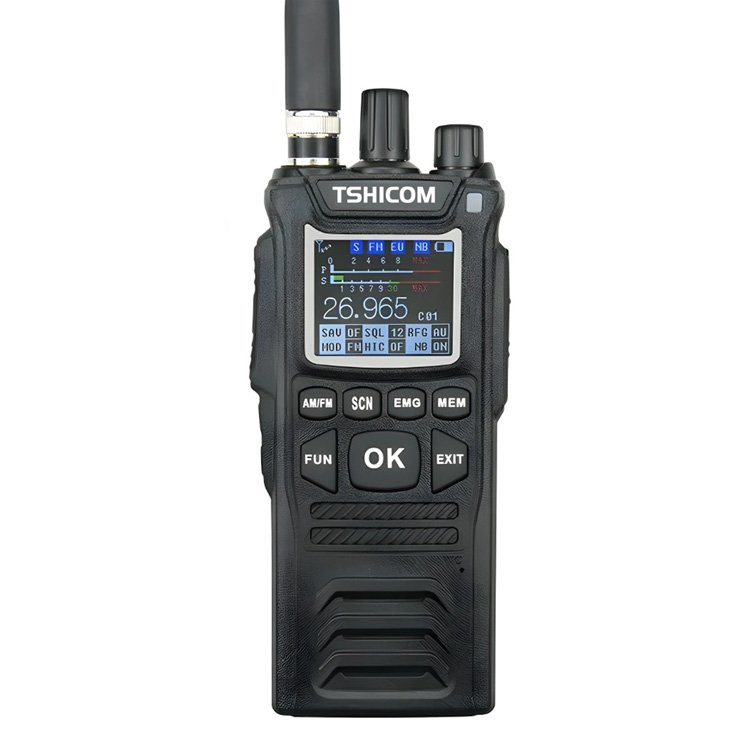

Color TFT LCD
The color TFT LCD presents the selected channel, modulation mode, signal information and enabled radio functions in a clear visual interface. This helps users identify the current operating status quickly while driving, walking or working outdoors.
Hi-Cut Reception Filter
The Hi-Cut filter reduces unwanted high-frequency components in received audio. It can make voice communication more comfortable when the received signal contains sharp hiss or high-frequency interference.
NB and ANL Noise Filters
The Noise Blanker and Automatic Noise Limiter functions help reduce selected background noise, pulse interference and electrical disturbance during reception. These filters are especially useful in vehicles and operational environments where ignition systems, motors or other electrical equipment may affect audio quality.
Filter performance depends on the type and strength of interference. These functions improve listening conditions but cannot remove every source of noise.
Automatic and Adjustable Manual Squelch
Automatic squelch helps mute background noise when no usable signal is present, reducing the need for continuous adjustment. The manual squelch function allows experienced users to set the opening threshold according to local signal and interference conditions.
Adjustable RF Gain
RF gain control allows the user to adjust receiver sensitivity. Maximum sensitivity may be suitable for weaker distant signals, while reducing RF gain can improve listening comfort when nearby signals are very strong or when the channel contains excessive noise.
CTCSS and DCS Encoding and Decoding
CTCSS tones and DCS codes can help separate groups sharing the same radio channel by keeping the speaker muted until the selected tone or code is received. This can reduce unwanted interruptions in environments where several groups use the same channel.
CTCSS and DCS are selective-calling tools rather than encryption. Other compatible radios monitoring the same channel without tone filtering may still hear the transmission.
DTMF Tone Encoding
The built-in DTMF encoder enables the radio to transmit dual-tone signalling sequences for compatible radio functions or systems. The exact use of DTMF depends on the receiving equipment and the communication configuration.
Eight Memory Channels
Up to eight frequently used channel configurations can be stored for faster access. This is useful for drivers or operational teams that regularly switch between calling, convoy, work-group or locally assigned channels.
Occupied-Channel Scan
The scan function automatically checks available channels and pauses when an active signal is detected. It helps users locate ongoing CB activity without manually checking each channel.
Quick Access to Channels 9 and 19
Dedicated access to channels 9 and 19 allows users to reach commonly used priority, calling or road-communication channels more quickly. The accepted purpose and local use of these channels vary by country and CB community.
Time-Out Timer
The Time-Out Timer limits excessively long continuous transmissions. This helps prevent accidental channel blocking when the PTT button is pressed unintentionally and reduces unnecessary transmitter operation.
Keyboard Lock and Night-Light Function
The keyboard lock helps prevent accidental changes to the channel or radio settings during transport and field use. The integrated night-light function provides additional visibility when operating in vehicles, campsites, roadside locations or other low-light environments.
Recommended Applications
Trucking and Commercial Transportation
Drivers can use the TS-CB58 for road-condition updates, vehicle-to-vehicle coordination, loading-area communication and convoy management without placing telephone calls.
Off-Road and Convoy Communication
The handheld format is suitable for off-road vehicle groups, support teams and mobile personnel that need portable communication when leaving the vehicle or operating away from fixed radio equipment.
Roadside Service and Recovery
Recovery operators and roadside teams can use the radio for short operational instructions between personnel, support vehicles and nearby drivers.
Rural and Outdoor Operations
Farms, outdoor event teams and field workers can use CB radio communication in areas where cellular service is limited, provided the selected channels and operating mode are permitted locally.
CB Radio Dealers and Distributors
The European multi-norm capability and AM/FM support make the TS-CB58 suitable for distributors serving multiple CB user groups. Destination-market configuration and regulatory documentation should be confirmed before bulk procurement.
Technical Specifications
| Item | Specification |
|---|---|
| Model | TS-CB58 |
| Product Type | Portable handheld Citizens Band two-way radio |
| Frequency Range | 26.965–27.405MHz |
| Modulation Modes | AM / FM |
| RF Output Power | Up to 4W AM/FM, subject to selected regional configuration |
| Regional Configuration | European multi-norm CB settings |
| Display | Color TFT LCD |
| Memory Channels | 8 |
| Selective Calling | CTCSS/DCS encoding and decoding |
| Tone Signalling | DTMF encoding |
| Noise Filters | Hi-Cut / NB / ANL |
| Squelch | Automatic squelch and adjustable manual squelch |
| Receiver Adjustment | Adjustable RF gain |
| Channel Functions | Occupied-channel scan and quick access to channels 9/19 |
| Transmission Protection | Time-Out Timer |
| Additional Functions | Keyboard lock and night-light function |
| Frequency Tolerance | ±5.0ppm |
| Dimensions | 165 × 67 × 44mm |
| Weight | 456g |
Specifications and available functions may vary according to regional configuration, production version and firmware. Final specifications should be confirmed in the quotation and product datasheet.
Understanding the Communication Range
The communication distance of a portable 27MHz CB radio is not determined by output power alone. Antenna efficiency, antenna position, terrain, nearby buildings, electrical noise, weather conditions and the receiving radio all affect practical performance.
- Open terrain: Fewer obstructions can support more reliable communication.
- Urban areas: Buildings, vehicles and electrical interference may reduce usable range.
- Inside vehicles: The vehicle body can affect the performance of a portable antenna.
- Antenna condition: A damaged, incorrectly fitted or inefficient antenna can significantly reduce performance.
- Local configuration: Permitted transmission power and modulation mode may affect results.
Buyers should evaluate a sample under the intended operating conditions before relying on a specific communication distance for a commercial project.
Regional Configuration and Compliance
The TS-CB58 supports European multi-norm operation, but radio regulations are not identical throughout Europe or other international markets. The correct country setting must be confirmed before shipment and selected before transmission.
Buyers and end users are responsible for confirming whether CB equipment requires registration, approval or a licence in the country of use. They must also confirm the permitted frequency channels, modulation modes, antenna arrangements and maximum RF output power.
Please provide the destination country when requesting a quotation so that the appropriate product configuration and available compliance documents can be checked.
Package and Configuration Confirmation

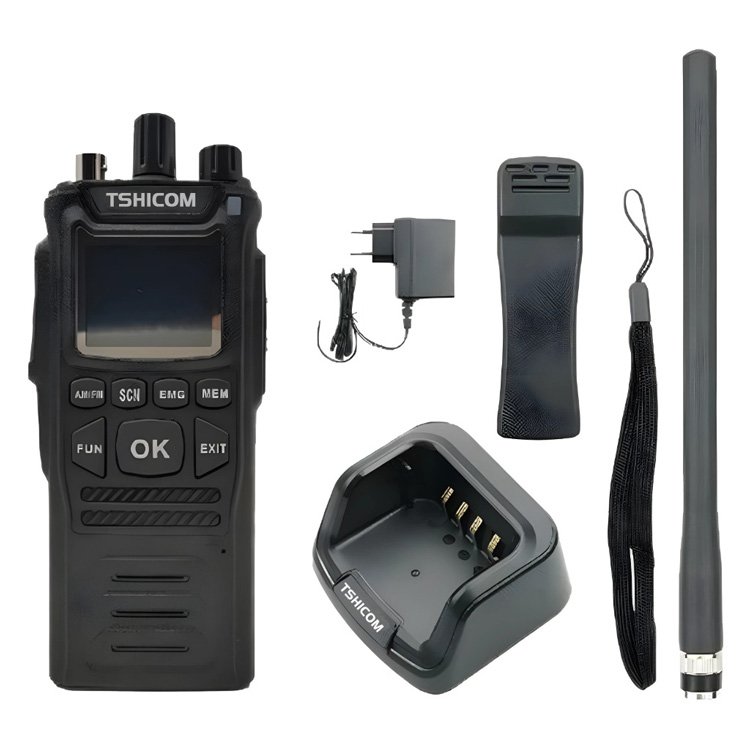

Package contents may vary according to the battery, charging option, antenna configuration, plug standard and destination market. The final quotation will clearly list all included components.
Before placing an order, please confirm the required quantity, destination country, regional CB norm, charging-plug standard, packaging requirement and any optional accessories.
Pre-Shipment Function Inspection
The ordered radios can be checked according to the confirmed product configuration before shipment. Inspection items may include:
- Power-on and TFT LCD display operation
- AM and FM transmission and reception
- RF output and frequency operation
- Automatic and manual squelch
- Hi-Cut, NB and ANL filter operation
- Memory-channel storage and recall
- Channel scanning
- CTCSS/DCS and DTMF functions
- Keyboard lock and night-light function
- Physical appearance and ordered package contents
B2B Procurement Information
| Procurement Item | Available Terms |
|---|---|
| MOQ | 2 sets |
| Sample Order | Available for product and range evaluation |
| Bulk Pricing | Quoted according to quantity and configuration |
| Dealer and Distributor Pricing | Available on request |
| Payment | T/T or Credit Card |
| Shipping Terms | EXW / FOB / FCA / DAP / DDP |
| Appointed Freight Forwarder | Accepted |
| Lead Time | Confirmed according to stock, quantity and configuration |
| Warranty | 1-year quality-issue replacement service, excluding damage caused by misuse |
Frequently Asked Questions
What is the guaranteed communication range?
There is no fixed guaranteed range. Practical distance depends on the antenna, terrain, buildings, interference, radio position and regional power configuration. A sample test in the intended environment is recommended.
Can this radio be used throughout Europe with the same setting?
Not necessarily. The radio supports multiple European CB configurations, but permitted channels, modulation modes and power levels may differ between countries. The destination country should be confirmed before shipment.
Does it require a SIM card or mobile-data subscription?
No. The TS-CB58 communicates directly over the 27MHz CB band and does not require a SIM card, mobile network or POC platform.
Is this a general-purpose shortwave receiver?
No. Although 27MHz is within the HF or shortwave spectrum, the TS-CB58 is designed primarily as a Citizens Band transceiver operating around 27MHz. It is not presented as a wide-frequency shortwave broadcast receiver.
Do CTCSS and DCS make conversations private?
No. They help filter unwanted calls and organise users sharing a channel, but they do not encrypt the transmitted voice.
What are channels 9 and 19 used for?
They are commonly used as priority, calling or road-communication channels in some CB markets. Their practical use varies by country and local CB convention.
Can I order one radio for testing?
Yes. The minimum order quantity is one set. Testing a sample is recommended before a bulk order, especially when communication range and regional configuration are important.
What information is required for a quotation?
Please provide the required quantity, destination country, intended application, required regional CB configuration, plug standard, packaging requirement and shipping destination.
